Description

High quality imaging with 8 MP resolution
Excellent low-light performance via DarkFighter2.0 technology
Efficient H.265+ compression technology to save bandwidth and storage
Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
Built-in front window heater to ensure clear image under rainy or snowy weather
Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras

iDS-2CD5T87G2/V-X(H)S(Y)

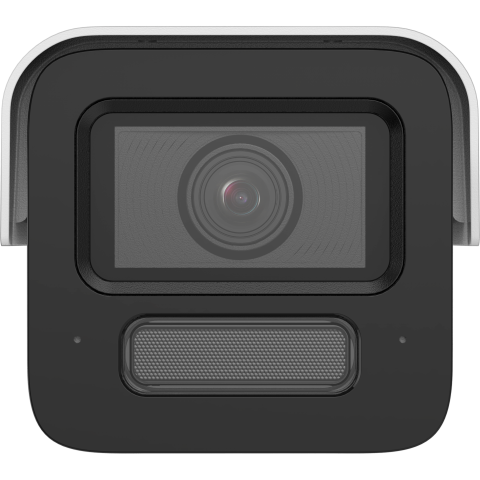

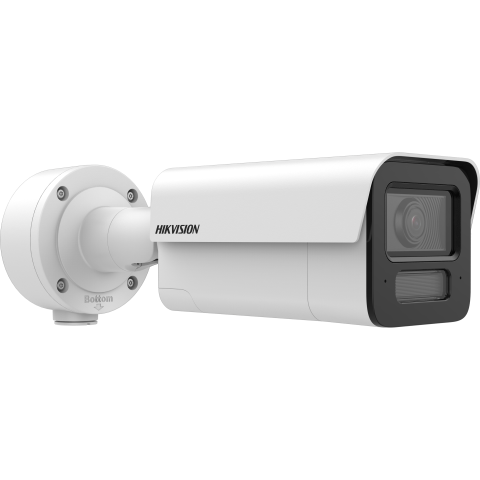

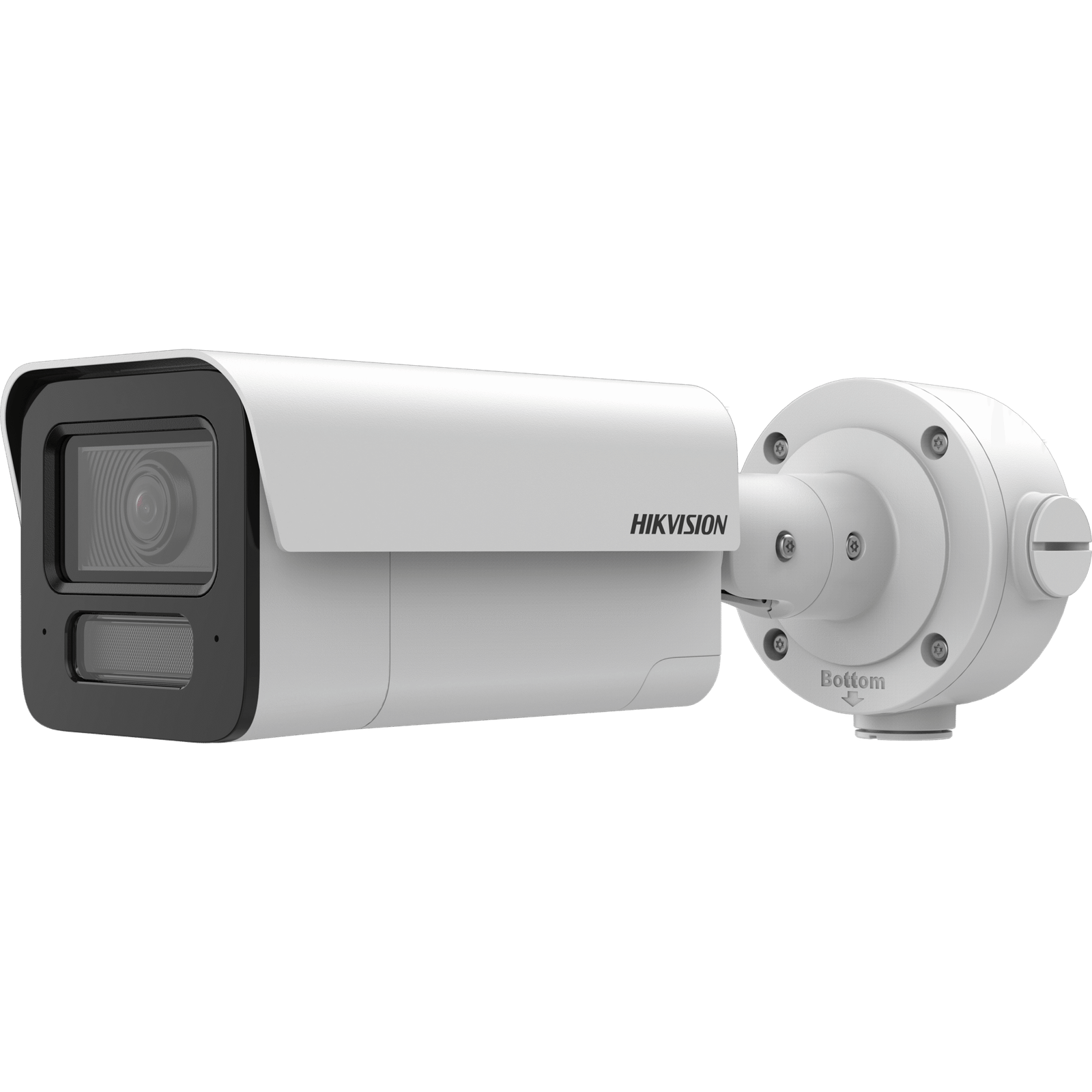

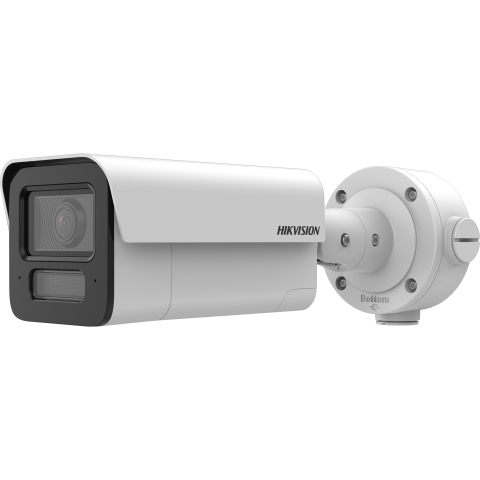

8MP DeepinViewX Fixed Lens Bullet Camera for Perimeter Protection
Hikvision has been dedicated to develop products with security since established.
Hikvision always follows security by design principle and has adopted many methods of security technologies into our
product development lifecycle, including terminal security, data security, application security, network security, and privac y
protection. In the meantime, the security technologies used by Hikvision are all in compliance with local applicable laws and
safety regulations. These security measures could enhance product’s cyber security protection capability and protect your
devices as well as your data from malicious cyber attacks.
 High quality imaging with 8 MP resolution
 Excellent low-light performance via DarkFighter2.0 technology
 Efficient H.265+ compression technology to save bandwidth and storage
 Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
 Built-in front window heater to ensure clear image under rainy or snowy weather
 Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras
 Function
Perimeter Protection
With embedded deep learning based target detection and classification algorithms, the camera carries out the duty of
perimeter protection, monitoring the actions of line crossing, intrusion, region entrance, and region exiting. The algorithms
greatly filter out the mistaken alarm caused by the interference of leafs, lights, animal, flag, etc.
 Specification
Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination
Color: 0.002 Lux @ (F1.0, AGC ON),B/W: 0.0002 Lux @ (F1.0, AGC ON),B/W: 0 Lux with
IR
Shutter Time 1 s to 1/100,000 s
Day & Night
IR cut filter,
Blue glass module (less ghost phenomenon)
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 54°, diagonal FOV 127°
4 mm, horizontal FOV 89°, vertical FOV 46°, diagonal FOV 108°
Iris Type Fixed
Aperture F1.0
DORI
DORI
2.8 mm, D (Detect): 61 m, O (Observe): 24 m, R (Recognize): 12 m, I (Identify): 6 m
4 mm, D (Detect): 75 m, O (Observe): 30 m, R (Recognize): 15 m, I (Identify): 7 m
The DORI values are calculated using pixel densities for different use cases as
recommended by the EN 62676-4 standard.
Illuminator
Supplement Light Type IR,White Light
Supplement Light Range
IR: up to 80 m
White Light: up to 60 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream
50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
50 Hz: 25fps (704 × 576, 640 × 480)
60 Hz: 30fps (704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP,
PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour,
SSL/TLS, ARP, WebSocket, WebSockets
Simultaneous Live View Up to 20 channels
API ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network
Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log,
TLS 1.2, TLS 1.3, AES128/256
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported.
Client iVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable
by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
SNR ≥ 52 dB
Privacy Mask 8 programmable polygon privacy masks
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Image Stabilization EIS
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Built-in Microphone 2 built-in microphones
Audio
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp,
input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp,
output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Built-in Speaker 1 built-in speaker,Max. power consumption: 1.5 W
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Power Output 12VDC,max.100mA,External extension cord less than 10 meters.
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and
vehicle)),video tampering alarm,video quality diagnosis,exception (network
disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error)
Smart Event
scene change detection,audio exception detection,defocus detection,loitering
detection,people gathering detection,fast moving detection,parking detection,
unattended baggage detection,object removal detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm
output,trigger recording,trigger capture,audible warning
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering
Dedicated large scale AI model for perimeter protection, reduce false alarms by 90%
compared to conventional AI cameras
VCA range:
4 mm models: 5 m to 80 m (daytime), 5 m to 60 m (nighttime)
2.8 mm models: 3 m to 70 m (daytime), 3 m to 50 m (nighttime)
*Result based on standard setup and test environment
Metadata
Intrusion detection,line crossing detection,region entrance detection,region exiting
detection
AcuSeek
Support search for humans, vehicles, This function requires use with AcuSeek
NVR/Servers.
General
Power
two-core terminal block,
12 VDC ± 20%, 1.6 A, max. 19.2 W,
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.54 A to 0.4 A, max. 22.8 W
Material Aluminum alloy body
Dimension 323.4 mm × 114.5 mm × 114.5 mm (12.73″ × 4.51″ × 4.51″)
Package Dimension 386 mm × 156 mm × 155 mm (15.3″ × 6.2″ × 6.2″)
Weight Approx. 1400 g (3 lb.)
With Package Weight Approx. 2101 g (4.59 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing),
Without -H: -30 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log
Heater Yes
Demist Yes
Integrated Connector Panel No
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC
61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015
Safety CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection -Y: NEMA 4X (NEMA 250-2018)
 Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.
With -Y model: This model has MODERATE PROTECTION.
Without -Y model: This model has NO SPECIFIC PROTECTION.
Level Description
Top-level protection
Hikvision products at this level are equipped for use in
areas where professional anti-corrosion protection is a
must. Typical application scenarios include coastlines,
docks, chemical plants, and more.
Moderate protection
Hikvision products at this level are equipped for use in
areas with moderate anti-corrosion demands. Typical
application scenarios include coastal areas about 2
kilometers (1.24 miles) away from coastlines, as well as
areas affected by acid rain.
No specific protection
Hikvision products at this level are equipped for use in
areas where no specific anti-corrosion protection is needed.
 Dimension
 Available Model
iDS-2CD5T87G2/V-XS(2.8mm)
iDS-2CD5T87G2/V-XS(4mm)
iDS-2CD5T87G2/V-XHSY(2.8mm)
iDS-2CD5T87G2/V-XHSY(4mm)
 Accessory
 Optional
DS-1276ZJ-SUS DS-1275ZJ-S-SUS DS-1275ZJ-Y DS-1275ZJ-SUS
 Installation Methods
Corner Mounting
DS-1276ZJ-SUS
Vertical Pole
Mounting
DS-1275ZJ-S-SUS
Vertical Pole
Mounting
DS-1275ZJ-Y
Vertical Pole
Mounting
DS-1275ZJ-SUS
